Dewatering Screens

Minning Sector

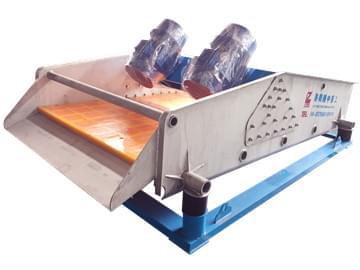

Dewatering Screens

Meco Technology Pvt. Ltd. is a leading provider of Dewatering Screen solutions, offering design, installation, operation, and maintenance services for industries that require efficient water removal and solid-liquid separation. Our high-performance dewatering screens improve product quality, reduce water content, and enhance process efficiency across mining, mineral beneficiation, sand processing, coal washeries, and industrial wastewater treatment.

  • Input Size: 0-10mm
  • Production Capacity: 0-180t/h
  • Final Water Content: as low as 12%-15%
  • Application Scope: sand and gravel yard, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station, metallurgy, etc.

Overview

Belong to the dewatering equipment, but the structure of dewatering screen is different when acting on different material, For example, sand dewatering machine in sand washing production line is different from the tailings dewatering sieve which is commonly used in the concentrating mill.

This type of stainless steel dewatering screen is borned by the R & D department and through many times testing . with low energy wasting and high efficiency as a whole, only for the special material. Mainly used for quartz sand, potassium feldspar, high acidic or alkaline materials and so on.

Working principle

Stainless steel dewatering screen is mainly composed of screen box, vibration exciter, supporting system and motor. The machine adopts double motor self-synchronization technology, universal eccentric block and adjustable amplitude vibrator.

The two unrelated vibrators run synchronously and inversely, and the centrifugal forces produced by the two groups of eccentric masses are superimposed along the vibration direction and counteracted by reverse centrifugation, thus forming a single excited vibration along the vibration direction, which makes the screen box move in a reciprocating straight line.


Features & Benefits

1. The main results are as follows: 1. Relatively small volume, large processing capacity per unit area, convenient process layout.
2. Suitable for a variety of dehydration needs, 24-hour continuous operation.
3. High wear-resistant sieve plate has long service life, modular assembly design and convenient replacement.


Specifications

Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Screen Area (m²) Power (kw) Overall Size (mm)
TS0918 ≤10 10-20 900*1800 1.62 0.75*2 1890*1290*1080
TS0924 ≤10 10-20 900*2400 2.16 1.1*2 2480*1290*1220
TS1224 ≤10 20-40 1200*2400 2.88 2.2*2 2480*1590*1430
TS1230 ≤10 20-40 1200*3000 3.6 2.2*2 3080*1590*1500
TS1236 ≤10 20-40 1200*3600 4.32 3.0*2 3680*1590*1500
TS1530 ≤10 30-60 1500*3000 4.5 3.0*2 3080*1890*1440
TS1536 ≤10 30-60 1500*3600 5.4 3.7*2 3680*1890*1450
TS1836 ≤10 60-80 1800*3600 6.48 5.5*2 3720*2420*1930
TS1842 ≤10 60-80 1800*4200 7.56 5.5*2 4370*2420*2100
